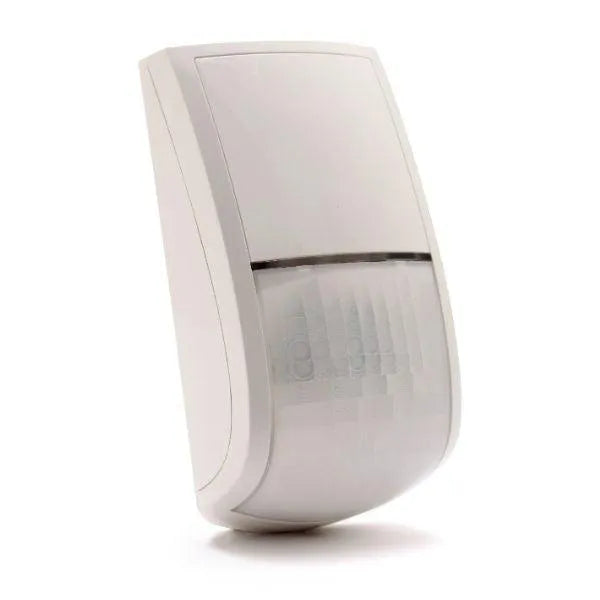

Risco BWARE Dual Technology 15mtr G2 Detector, RK515DTGL00B

SKU RK515DTGL00B
by Risco

BWare™ is RISCO Group’s state-of-the-art commercial detector seriesn Line RK515DTGL00B

Model : RK515DTGL00B

Powered by RISCO’s detection technologies, these elegant and easy to install detectors are ideal for commercial, institutional and high-end residential installations. BWare™ is extremely reliable thanks to its usage of K-band microwave and other unique detection technologies. A convex lens provides enhanced catch performance and gold-plated wall and cover tampers for higher reliability. The BWare™ Bus models save installation time and cost, and can be remotely serviced using the RISCO Bus. The BWare™ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions of Dual Technology, QUAD and RISCO Bus models available.

Specifications

Coverage 15m 90°
Mounting Height 2.1m - 2.7m
Detection Sensors 2 Dual Element PIRs
Anti-Cloak™ Technology (ACT) Yes
Lens type Convex Fresnel Lens
Green Line™ Technology Yes
Extra Zone Input for Bus models Yes
Built-in EOL resistors for Relay models Double EOL
Tampers Gold plated cover tamper
LED & Set inputs Yes
White Light Optical Filtering Pigmented Fresnel lens
Temperature Compensation Patented True Temperature compensation
Operating Voltage 9 to 16VDC
Current Consumption at 12VDC 16mA (typical) 39mA (max.)
Output Contacts: 100mA, 24V, N C Alarm, Tamper
RF immunity: 10MHz to 3GHz According to EN50130-4
Operating Temperature -20° C to 55° C
Storage Temperature -20° C to 60° C
Dimensions (HxWxD) 120x64x40mm


Risco Security Warranty
  • Risco security products are covered by a 3 year Manufacturer Warranty.
  • Exclusion are labour for installed by others.
  • CTC Communications provides a 1 year warranty on labour when the security product is installed by our Team.
  • Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
