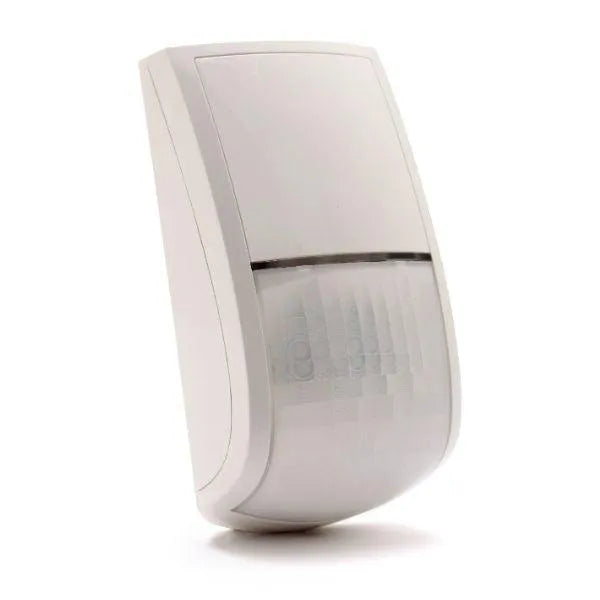

Risco BWare Quad PIR 15mtr G3 Detector, RK500Q0G300A

SKU RK500Q0G300A
by Risco

Risco BWare Quad PIR 15mtr G3 Detector Stay secure with an advanced G3 Detector. This reliable, long-range detector will help ensure your safety.

Model; RK500Q0G300A

Features

  • 15m 90° Coverage
  • 2 Dual Element PIR's
  • Convex Fresnel Lens
  • Anti-Mask Detection Active Infrared
  • White Light Optical Filtering
  • True Temperature Compensation
  • Built-in Triple EOL resistors, jumper selectable
  • Gold Plated Wall and Cover tampers
  • True temperature compensation
  • Output Contacts Alarm, Tamper & Fault/AM
  • Installation height 2.1m - 3.3m

DESCRIPTION

BWare™, RISCO Group’s state-of-the-art wired and wireless detector series for professional installations, scores high points for its smart and modern design in addition to its advanced technology and reliability.

The BWare™ series offers a comprehensive array of wired, wireless and Bus detectors utilizing RISCO’s industry-leading detection technologies, such as Anti-Cloak™ and K-band microwave for improved catch performance, including a unique wireless DT detector with active IR anti mask.

The BWare™ series is ideal for a wide range of commercial and high security applications, with Grade 2 and Grade 3 versions. The BWare™ smart detector family provides you with the flexibility to utilize professional detectors in any installation - wired, wireless



FUNCTIONS

BWare™ smart detector line provides professional installers with the ultimate choice for high-security commercial and residential installations. The wide selection of models offer the flexibility to choose the best fit for all installation types, whether for a bank, jewellery shop, office, or any other commercial or residential site.

The BWare™ smart detector series also utilizes several advanced technologies unique to RISCO Group for superior performance:

Grade 3 for increased security

BWare™ Grade 3 detectors meet and exceed EN50131 Grade 3 standards and include additional features that increase reliability and false alarm immunity

Convex Lens for enhanced performance

BWare™’s convex lens is superior as its larger size and convex shape allow more infrared radiation to enter the detector, improving focus on the sensor and enhancing performance and sensitivity.

Built-in EOL Resistors for ease of installation

BWare™ relay detectors include built-in end-of-line resistors eliminating the need for installers to attach resistors in the detector, simplifying the installation and saving time.

Active IR Anti Mask

BWare™ Grade 3 and Wireless DT detectors include Active IR technology which checks for deviations in lens transparency and reflections close to the lens. Active IR is the most reliable anti-mask method as it continuously checks the physical capability of the detector to see through the lens, for indicating masking and for cancelling mask status.



SPECIFICATIONS

EN50131 Grade 3, Class II
Coverage 15m (50’) 90°
Mounting Height 2.1m - 3.3m
Detection Sensors 2 Dual Element PIRs
Anti-Cloak™ Technology (ACT) -
Lens type Convex Fresnel Lens
Green Line™ Technology -
Anti-Mask detection method Active Infrared
Extra Zone Input for Bus models ?
Built-in EOL resistors for Relay models Triple EOL
Tampers Gold plated wall & cover tampers
LED & Set inputs for relay models ?
White Light Optical Filtering Pigmented PIR covers
Temperature Compensation Patented True Temperature compensation
Operating Voltage wired models: 9 to 16VDC
Wired models Current Consumption at 12VDC 14mA (typical)
34mA (max.)
Output Contacts on relay models:
100mA, 24V, N.C
Alarm, Tamper & Fault/AM
Wireless models power -
RF immunity: 10MHz to 3GHz According to EN50130-4
Dimensions (HxWxD) 120x64x40mm

Risco Security Warranty
  • Risco security products are covered by a 3 year Manufacturer Warranty.
  • Exclusion are labour for installed by others.
  • CTC Communications provides a 1 year warranty on labour when the security product is installed by our Team.
  • Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
