Aiphone GT-10H 10 Apartment Multi Tenant Audio Handset Intercom System Set (GT-1D)

SKU GT-10H
by Aiphone

The Aiphone GT-10H 10 Apartment Multi Tenant Audio Handset Intercom System Set(GT-1D) offers advanced audio technology for dependable communication between apartments. With this system, you can always stay informed of important visitors and deliveries for added peace of mind.

The GT Series, GT-10D is an audio only handset tenant station for the GT series Multi-Unit entry system.  It is equipped with Door Release, Option, and Guard buttons.

When a visitor calls, the tenant station rings and the call is answered by picking up the handset. The GT-1D also has the capability of calling the Concierge/Security Guard station(s), turning on a light while speaking with a visitor at the entrance, and receiving an emergency tone from a pull cord or panic call button.

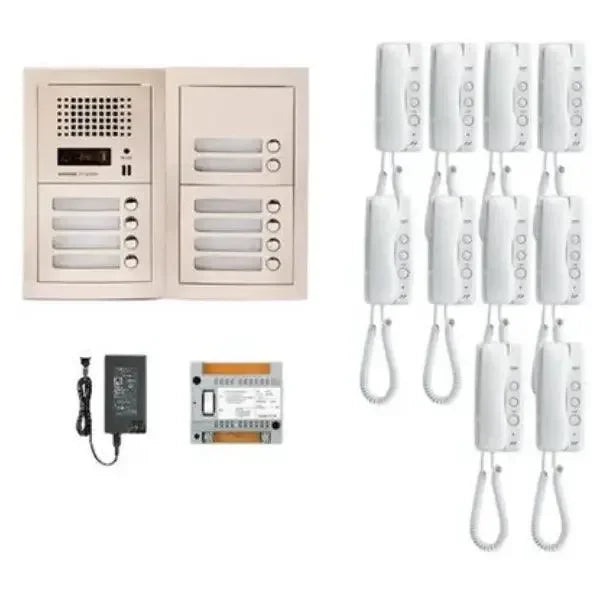

Aiphone 10 Apartment  GT Audio System Set Contains
In the Kit:

GT-DB

Audio Module

GT-DBP

Audio Module Panel

GF-4P
(Contains 2)

4-Call Button Panel

GF-2P

2-Call Button Panel

GT-SW
(Contains 3)

Call Switch Module

GF-2F
(Contains 2)

2-Module Front Frame

GF-2B
(Contains 2)

2-Module Back Box

GT-BC

Audio Bus Control Unit

GT-1D
(Contains 10)

 GT Audio Only Tenant Handset

PS-2420UL

24 VDC Power Supply

W-DIN11

Din Rail Mounting Bracket




Features

  • ADA compliant design
  • More variety of stations
  • 170° Pan Tilt & Zoom video camera for larger viewing area
  • Built-in access code keypad for keyless entry (500 codes)
  • Alpha-numeric room numbering
  • Link data allows for easy programming of multiple entrances/guard stations
  • Up to 16 entrance panels,4 guard stations and 500 tenant stations
  • Simple wiring with only 2 common wires for audio
  • Access control from inside station to calling entrance (door release)
  • Optional individual doorbell to ring tenant stations
  • Optional individual audio only door station or video door station to ring tenant station (GT-2C only)
  • Door release timer (momentary~20 seconds)
  • Security guard station can be included to provide communication between office/lobby and tenants
  • Optional panic call switch for emergency calling to guard/concierge
  • Optional postal lock module,allowing easy entry for postal and delivery workers (modular design only)
  • Security guard can screen calls from visitors (Reception Mode)
  • Both audio/video and audio-only entrance panels can be combined in the same system
  • LED's at door allow use in low light conditions
  • Only 2 additional wires are required to add video
  • Tenant can view entrance panel by pressing "key" button

Specifications


Power Supply

24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and
GT-2C)

Current Consumption

GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A,
GT-2C: 0.26 A, GT-2H: 0.11 A

Call Tone

There are three different types of call tones: from entrance station, security guard station, and doorbell

Talk & Video Path

Secure single channel

Communication

Hands-free, voice-actuated communication or push-to-talk communication

Door Release

Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact

Wiring

Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)

Type of Cables

Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG

Condition of sale :

  • Prices available per request
  • This product suits only licensed installer or integrator
  • No tech support can be offered over the phone due to the technicality and installation requirement of products.
  • Door station will be supplied in non-assembled part and accessories and onsite assembly requires
  • Door station supplied in the kit is surface mounted door station only.
  • Door station rain hood is included in the kit
Benefits of A Home Intercom System

Benefits of A Home Intercom

  1. Enhanced Security: One of the primary reasons homeowners opt for intercom systems is to bolster their security. These systems allow you to verify the identity of visitors before granting them access to your home. Whether it's a delivery person, a repair technician, or simply a friend or family member, you can safely communicate and confirm their identity without having to open the door.

  2. Convenient Communication: Intercom systems provide a convenient way for family members to communicate with each other throughout the house. Instead of shouting across rooms or running up and down stairs, you can simply press a button and talk through the intercom. This is especially useful in larger homes where communication can be challenging.

  3. Access Control: Home intercom systems often come with access control features, allowing you to remotely grant or deny access to your property. This is particularly beneficial if you have a gated entry or want to manage access to specific areas within your home, such as a home office or private quarters.

  4. Monitor Front Door Activity: Modern intercom systems are equipped with video capabilities, enabling you to see who is at your front door. This feature is especially valuable for screening unexpected visitors or monitoring package deliveries when you're not at home. Some systems even allow you to capture images or video footage for future reference.

  5. Deterrence Factor: The mere presence of an intercom system can act as a deterrent to potential intruders. When burglars see that your home has an intercom system, they may think twice before attempting a break-in, knowing that their presence will be easily detected and recorded.

  6. Home Automation Integration: Many home intercom systems can integrate with your home automation setup, allowing you to control other smart devices in your home. You can use voice commands to adjust the thermostat, turn on lights, or even lock/unlock doors, making your home smarter and more efficient.

  7. Surveillance Solution- Many brands such a Dahua can integrate surveillance camera viewing into your intercom system.
  8. Peace of Mind: Knowing that you can communicate with family members, monitor your property, and control access to your home provides a sense of security and peace of mind. Whether you're away for the weekend or simply relaxing in your backyard, you'll have the assurance that you can stay connected to your home.

Check out our blog posts

Shop CTC Communications for best deals on Aiphone Intercom Kits



    Aiphone Intercom Warranty
    • Aiphone products are covered by a 3 year Manufacturer Warranty.
    • Exclusion are labour for products installed by others.
    • CTC Communications provides a 1 year Warranty on labour when the security product is installed by our Team.
    • Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
