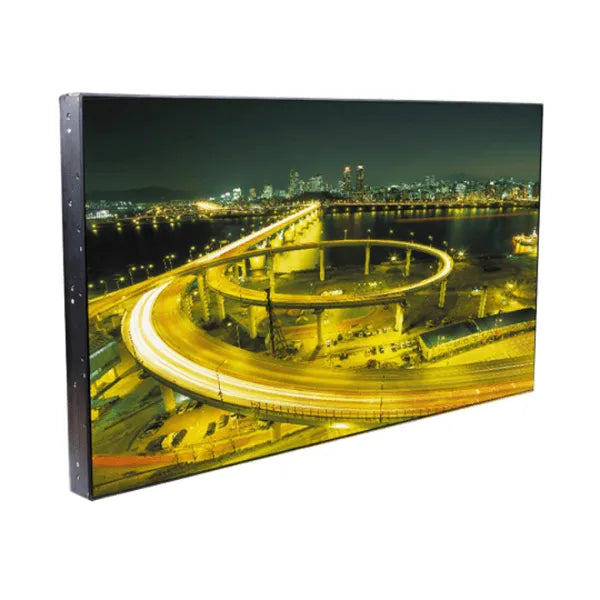

Uniview 55"HDMI Video Wall Display Monitor, MW5255-P3-D

SKU MW5255-P3-D
by Uniview

Uniview VGA LCD wall display monitor MW5255-P3-D with 1920x1080 resolution, ideal for CCTV security surveillance monitoring of cameras.

Model: MW5255-P3-D

  • 55" LCD Splicing Monitor
  • 1920x1080 Resolution
  • HDMI, DVI, and VGA Output

Features

  • Industrial-grade panel,High reliability integration design
  • Built-in image splicing function
  • Support special splicing compensation
  • Support screen to prevent cauterizing, image flip
  • Support white balance
  • Support infrared control and RS232 hoop control
  • Support record and display working time on panel
  • Support fast splicing unit ID, convenient for adjustment
  • Supports double frame function
  • Power delay function after power
  • Support rich video signal interface:DVI、HDMI、VGA

Specifications

Panel parameters
Resolution 1920×1080
Physical splicing (mm) 3.5
Color 16.7M
Brightness(cd/m2) 500
Contrast 4000:1
Response time(ms) 8
Angle(H/V) 178°/178°
Interface
Video input 1 DVI,1 HDMI,1 VGA
USB 1 USB
Control Interface 1 RS-232,1 RS-232,1 IR interface
Device
Dimension(W×H×D)(mm) 1213.70×684.50×125.59
Power supply AC 100~240V
Power consumption(W) 220
Weight(kg) 24.5
Operating temperature 0~50℃
Operating humidity 20%~90%(non-condensing)

Downloads

Uniview 55"HDMI Video Wall Display Monitor, MW5255-P3-D Datasheet
