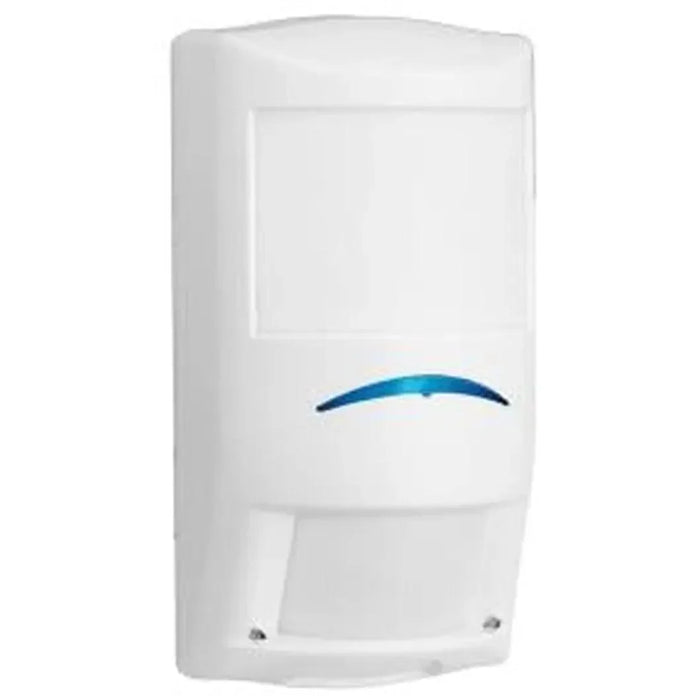

Bosch Pro Series PIR w/Anti-Mask,ISC-PDL1-WA18G

SKU F.01U.381.621 ISC-PDL1-WA18G
by Bosch
Availability:
in stock, ready to be shipped

Bosch Professional Series TriTech+ Detectors with Anti‑mask

Sale Sale
Original price $274.50
Original price $274.50 - Original price $274.50
Original price $274.50
Current price $211.15
$211.15 - $211.15
Current price $211.15

✓ Flat Rate Shipping $17.50 ✓ Free Delivery over $500

Shipping

Shipping Policy

Free Shipping

  • Free shipping for orders over $500.00.

Postage Charge

  • We charge a flat rate of AUD $17.50 for every order regardless of quantity.

Delivery Policy

  • All prices displayed on this website exclude shipping costs

Delivery Method

  • C.T.C Communications delivers products Australia wide using Australia Post delivery service.

International Shipping

  • We currently do not ship good overseas.

Parcel Tracking

  • All packages sent are registered with Australia Post E Parcel service and provide full tracking once it leaves our premises until it arrives at its destination. A signature on arrival is necessary for shipment.
  • Please ensure your mobile number and emails are entered into your order to help us with this automated tracking service.
Delivery Times

Delivery Times

  • Orders are dispatched within 2 business days and shipping times are estimated at between 3-7 business days depending on your location within Australia.

Transit Times

  • We are not responsible for Australia Post transit times as they do vary depending upon your destination.

Dispatch Times

  • Australia Post picks up from our office is at 2:30pm weekdays, orders placed after 2:30pm that day will not be in the post until the following day.

Public Holidays and Weekends

  • Please note, no goods are dispatched on weekends or public holidays.

Express Post

  • Express orders shall be dispatched within 24-48 working hrs. Staff will be in contact if there is any delay. Delivery time will be dependent of your location within Australia. .

P.O Box Delivery

  • We delivery to PO Boxes and Parcel Lockers but ideally work addresses are more suitable for a signed delivery.

Business to Business with Sydney

  • For companies in Sydney we utilise our local courier service Couriers Please.

Pick up in-store

  • Pick up is available at our Seven Hills showroom, Unit 31/1 Prime Drive, Seven Hills, NSW, 2147.

Urgent Deliveries

  • If you require this parcel urgently please call our office on 1300 552 282 to ensure all items are in stock prior to purchasing.
Refund Policy

Trade Accounts

To learn more about our trade accounts and how you can save money on your next security purchase.

Apply Now


Bosch Professional Series TriTech+ Detectors with Anti‑mask These detectors offer you the ability to detect masked intruders immediately, providing enhanced security for your space.

Model: ISC‑PDL1‑WA18G

Commercial Alarm System Detectors

  • 18 m x 25 m (60 ft x 80 ft) standard coverage, 8 m x 10 m (25 ft x 33 ft) selectable short range coverage
  • EN50131-2-4 Grade 3 compliant
  • Sensor data fusion technology
  • Tri-focus optics technology
  • Range adaptive radar
  • MANTIS anti-mask
  • Active white light suppression
  • Dynamic temperature compensation
  • Remote walk test
  • Alarm memory
  • Draft and insect immunity
Power Requirements
Voltage (Operating): 9 VDC to 15 VDC
Current (Maximum): < 26 mA with alarm, trouble, and LEDs active.
Current (Standby): 18 mA at 12 VDC
Outputs for All Models
Tamper: Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum.Connect tamper circuit to 24-hour protection circuit.
Trouble: Solid state relay normally-closed (NC) contacts.
Outputs for ISC-PDL1-WA18G and ISC-PDL1-WA18H
Alarm Relay: Solid state relay, normally-closed (NC) contacts, power supervised.3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Outputs for ISC-PDL1-WA18GB
Alarm Relay: Solid state relay, normally-open (NO) contacts, power supervised.3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Enclosure Design
Color: White
Dimensions: 127 mm x 69 mm x 58 mm(5 in. x 2.75 in. x 2.25 in.)
Material: High-impact ABS plastic


Indicators
Alarm Indicator: Blue LED for TriTech+ alarms
Yellow LED for microwave detection
Red LED for PIR detection
Zones
Zones: 86
Relative Humidity: 0 to 95%, non-condensing
Temperature (Operating and Storage): -30°C to +55°C (-22°F to +130°F)For AFNOR certificated installations,-10°C to +55°C (+14°F to +130°F)For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
Environmental Rating (EN 50130-5): Class II
Protection Rating (EN 60529, EN 50102): IP 41, IK04



Shop CTC Communications for best deals Bosch Security Products


    Bosch Security Products Warranty

    • Bosch security products are covered by a 3 year manufacturer warranty
    • Please Note: Exclusions are labour for Bosch Security products installed by others companies
    • CTC Communications provides a 1 year warranty on labour when the security product is installed by our team
    • Freight cost is excluded from warranty, unless the product is dead upon arrival
