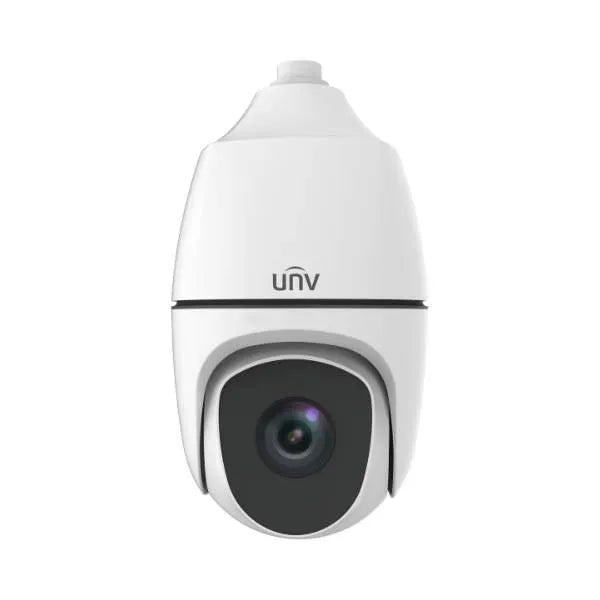

Uniview 8MP PTZ Dome Camera, 40X , IPC6858ER-X40VF

SKU IPC6858ER-X40VF
by Uniview

High quality 8 megapixel Uniview ptz dome camera, with 40X optical zoom and lighthunter technology.

Model: IPC6858ER-X40VF

Lighthunter Technology| Commercial | 40X Optical Zoom

Features

  • High quality image with 4MP,1/1.8’’ CMOS sensor
  • 2688*1520@30fps in the main stream
  • Ultra 265, H.265, H.264, MJPEG
  • Five streams
  • 40X Optical Zoom
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • Smart IR, up to 250m (820ft) IR distance
  • AC 24V ±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
  • Alarm 7 in and 2 out, Audio 1 in and 1 out

    Specificiations

    IPC6854ER-X40-VF
    Camera
    Sensor 1/1.8", 4.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour: 0.0005Lux (F1.3, AGC ON)
    0Lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    WDR 120dB
    S/N >56dB
    Lens
    Lens type 5.7 ~ 228mm, AF automatic focusing and motorized zoom lens
    Digital Zoom 16
    Optical Zoom 40
    Iris Auto; F1.3 ~ F4.6
    Angle of View (H) 59.5° ~ 2.2°
    Angle of View (V) 35.6° ~ 1.2°
    Angle of View (O) 70.2° ~ 2.6°
    DORI
    DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
    5.7 107.2(351.8ft) 42.9(140.7ft) 21.4(70.4ft) 10.7(35.2ft)
    228 3330.6(10927.2ft) 1332.2(4370.9ft) 666.1(2185.4ft) 333.1(1092.7ft)
    Illuminator
    IR Range Up to 250m (820 ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;
    Sub Stream: 2MP (1920*1080), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps
    Fourth Stream: D1 (720*576), Max 30fps
    Fifth Stream: D1 (720*576), Max 30fps
    Video Bit Rate 128 Kbps~16 Mbps
    H.264 Type Baseline Profile/Main Profile/High Profile
    H.265 Type Main Profile
    U-code Support
    ROI Up to 8 areas
    Video Stream Five streams
    OSD Up to 8 OSDs
    Privacy Mask Up to 24 blacks (Up to 4 blacks in the same picture)
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital noise reduction 2D/3D DNR
    Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
    EIS N/A
    HLC Support
    BLC Support
    Defog Optical Defog & Digital Defog
    Events
    Basic Detection Motion detection, Audio detection, Tampering Alarm
    General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
    User Authentication
    Auto tracking Support later
    Audio
    Audio Compression G.711U,G.711A
    Audio Bitrate 64 Kbps
    Two-way audio Support
    Suppression Support
    Sampling Rate 8kHz
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR,NAS(NFS)
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
    User/Host Up to 32 users. 2 user levels: administrator and common user
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client EZStation
    EZview

    EZLive
    Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
    Pan & Tilt
    Pan Range 360° (endless)
    Pan Speed 0.1°/s ~ 180°/s
    Preset speed: 300°/s
    Tilt Range -15° ~ 90° (auto reverse)
    Tilt Speed 0.1° ~ 180°
    Preset speed: 240°/s
    Number of Presets 1024
    Patrol Preset patrol, Route patrol, Recorded patrol
    Patrol Stay Time 15s~1800s
    Preset Image Freeze Support
    Home Position Support
    Interface
    Audio I/O 1/1
    Alarm I/O 7/2
    Serial Port 1 RS485
    Built-in Mic N/A
    Built-in Speaker N/A
    WIFI N/A
    Network 1*10M/100M Base-TX Ethernet
    Video output N/A
    Certification
    EMC FCC CFR 47 Part 15
    EN 55032:2015
    EN 55024:2010
    EN 61000-3-2:2014
    EN 61000-3-3-2013
    Safety IEC 62368-1
    EN 62368-1
    UL 60950-1
    Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
    Protection Ingression protection: IP66 (IEC 60529-2013)
    General
    Power AC 24V ±25%, DC 24V±25%,PoE++(IEEE802.3 bt)
    Power consumption: Max 61W
    Power Interface Wires with cold-pressed terminal
    Dimensions (Ø x H) Φ270 x 497mm (Φ10.6” x 19.6”)
    Weight 9.69kg(21.36lb)
    Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
    Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
    Surge Protection 6KV
    Vandal Resistant N/A
    Ingress Protection IP66
